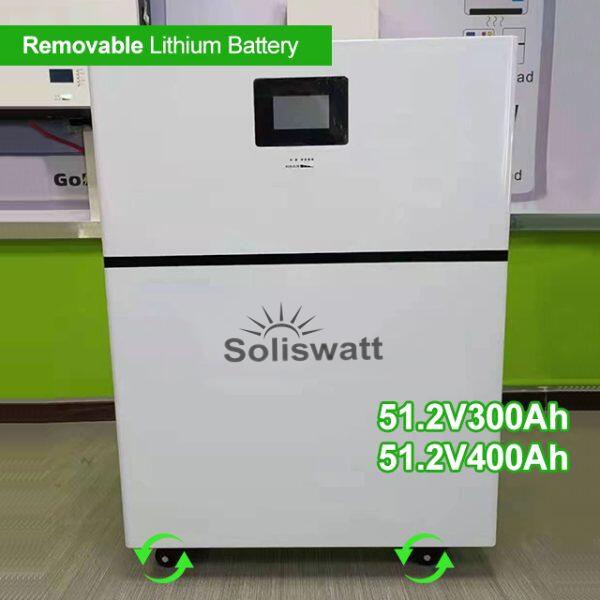

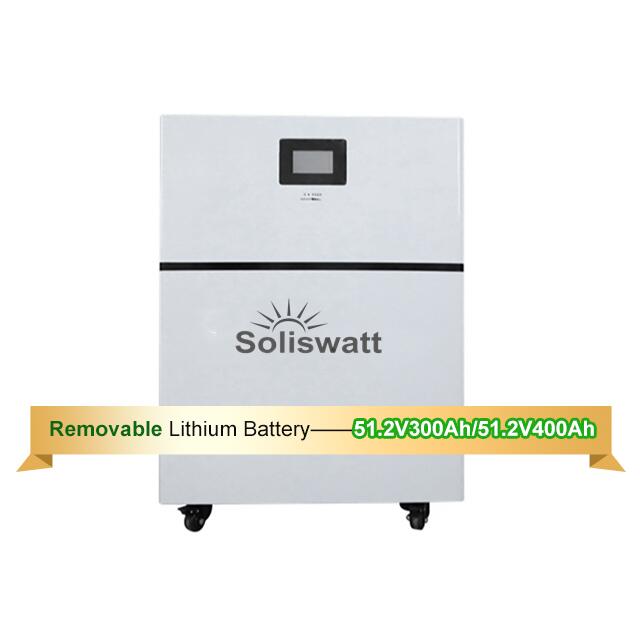

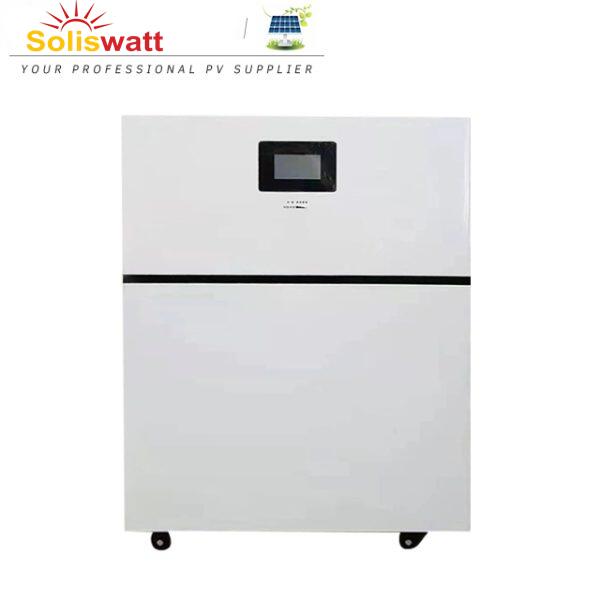

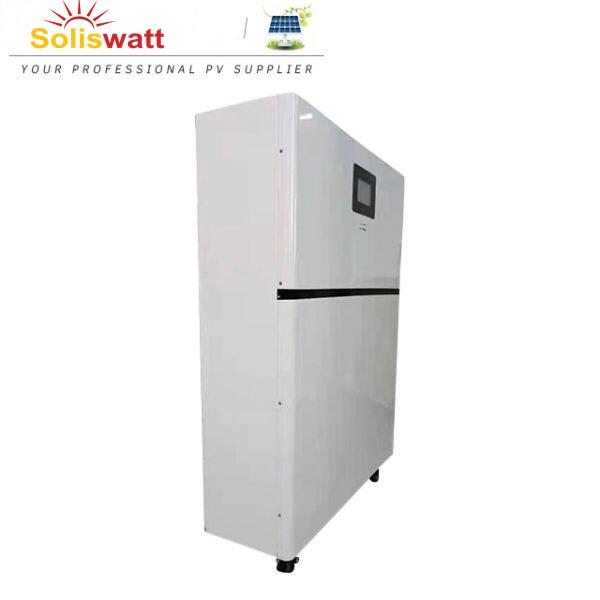

Solis ESS 51.2V 300Ah 15Kwh Removable Lithium Battery
Solis ESS 51.2V 300Ah 15Kwh Removable Lithium Battery
Solis ESS 51.2V 400Ah 20Kwh solar storage ups Lifepo4 lithium battery pack rechargeable lithium ion for ess system
| Model Number: | SWB51.2V-400ah |
| Capacity： | 20KWH |
| Battery Rated Voltage: | 51.2V |
| Dimensions（mm）: | 920*735*235 |
| Weight（kg）: | 150 |
Features
1. Higher energy density.
2. A longer cycle life.
3. Easier to connect in series and parallel, and different battery packs are used for different projects.
4. Under the same capacity, have smaller volume and weight.
5. More safer, and BMS manages all modules in a unified manner.
Basic Parameters | 51.2V 300Ah | 51.2V 400Ah |
Factory Voltage | 51.2V-52V | |
Charging Voltage | 57V | |
Max Charging Current(Icm) | 100A | |
Limited Charging Voltage(Ucl) | 57.6V | |
Max Discharging current | 200A | |
Discharge Cut-off voltage(Udo) | 43.2V | |
Single module Size | 920*735*235mm | |
Weight | 120Kg | 150Kg |

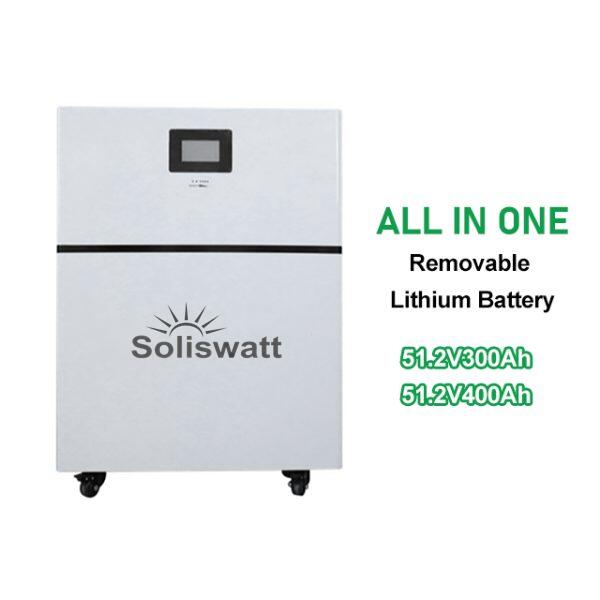

All In One Lithium Battery
Home Power Storage Brick Battery uses the latest HVLL( High Voltage Less Loss) technology to efficiently utilize the electricity stored in lithium batteries by reducing normal consumption in power transmission. The higher voltage, the lower current and the less losses of the internal resistance, so the battery generates less heat at high power than at low power.
