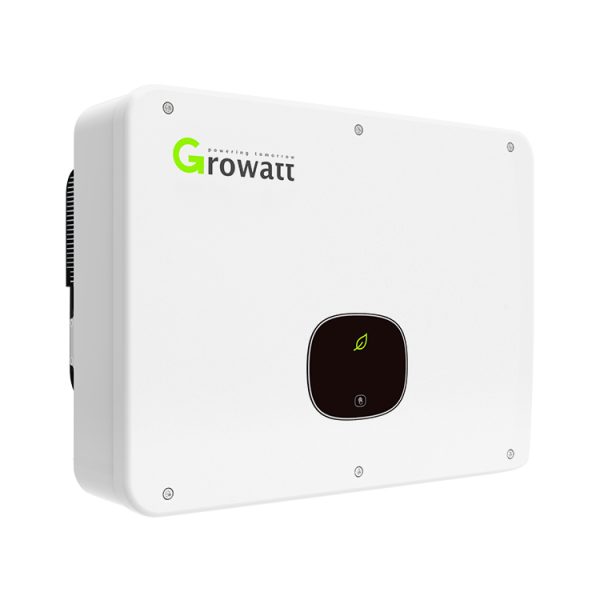

Growatt 15kw 25kw 380V Triple Phase On Grid Solar Inverter
Growatt 15kw 25kw 380V Triple Phase On Grid Solar Inverter
Growatt on grid solar inverter 15KW 20KW 25KW on grid 10kva 3 phases solar inverter
| Model Number: | MID 15-25KTL3-X |
| Output power： | 15-25kw |
| Output Voltage: | 380V |
| Size: | 525*395*222mm |
| Weight: | 23KG |
The new Growatt MID 15-25KTL3-X range of 3-phase inverters is lighter and more compact than previous models. It is suitable for residential and small commercial installations.
Datasheet | MID15KTL3-X | MID17KTL3-X | MID20KTL3-X | MID22KTL3-X | MID25KTL3-X |
Input data (DC) | |||||
Max. recommended PV power (for module STC) | 22500W | 25500W | 30000W | 33000W | 37500W |
Max. DC voltage | 1100V | ||||
Start Voltage | 250V | ||||
Nominal voltage | 580V | ||||
MPPT voltage range | 160V-1000V | ||||
No. of MPP trackers | 2 | ||||
No. of PV strings per MPP tracker | 2 | 2/3 | |||
Max. input current per MPPT tracker* | 27A | 27A/40.5A | |||
Max. short circuit current per MPPT | 33.8A | 33.8A/50.7A | |||
Output data (AC) | |||||
Rated AC output power | 15000W | 17000W | 20000W | 22000W | 25000W |
Max. AC apparent power | 16600VA | 18800VA | 22000VA | 24400VA | 27700VA |
Nominal AC voltage(range*) | 220V/380V, 230V/400V (340-440V) | ||||
AC grid frequency;(range*) | 50/60 Hz (45-55Hz/55-65 Hz) | ||||
Max. output current | 24.2A | 27.4A | 31.9A | 35.5A | 40.2A |
Adjustable power factor | 0.8leading…0.8lagging | ||||
THDi | <3% | ||||
AC grid connection type | 3W+N+PE | ||||
Efficiency | |||||
Max.efficiency | 98.75% | ||||
European efficiency | 98.6% | ||||
MPPT efficiency | 99.9% | ||||
General data | |||||
Dimensions (W / H / D) | 525/395/222mm | ||||
Weight | 23kg | ||||
Operating temperature range | -25 °C ... +60 °C | ||||
Self-Consumption (night) | <1W | ||||
Topology | Transformerless | ||||
Cooling | Smart air cooling | ||||
Protection degree | IP65 | ||||
Relative Humidity | 0~100% | ||||
Altitude | 4000m | ||||
DC connection | H4/MC4(Optional) | ||||
AC connection | Cable gland+OT terminal | ||||
Display | OLED+LED/WIFI+APP | ||||
Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN | Yes/Yes /Optional/Optional/Optional/Optional | ||||
Warranty: 5 years / 10 years | Yes /Optional | ||||
