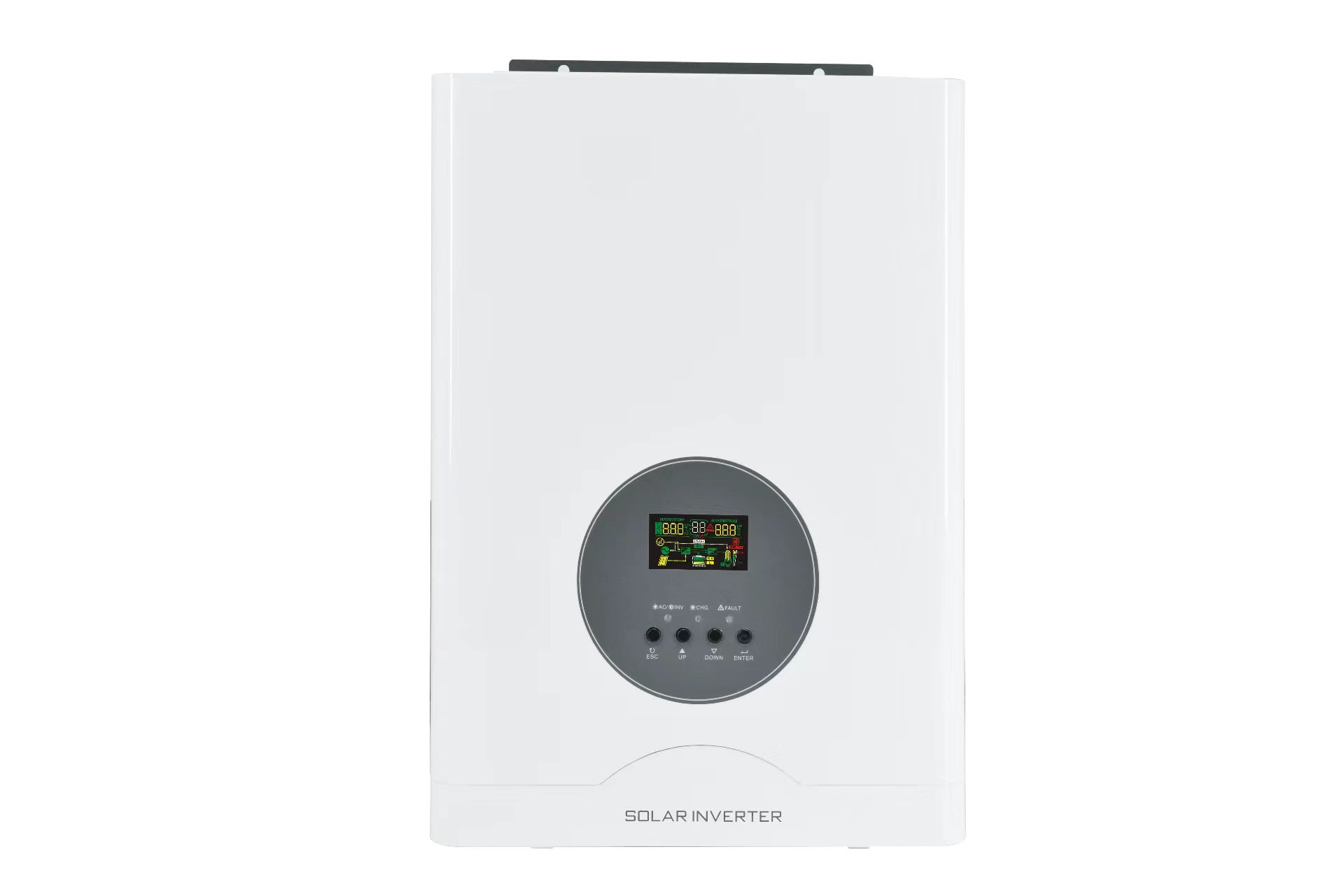

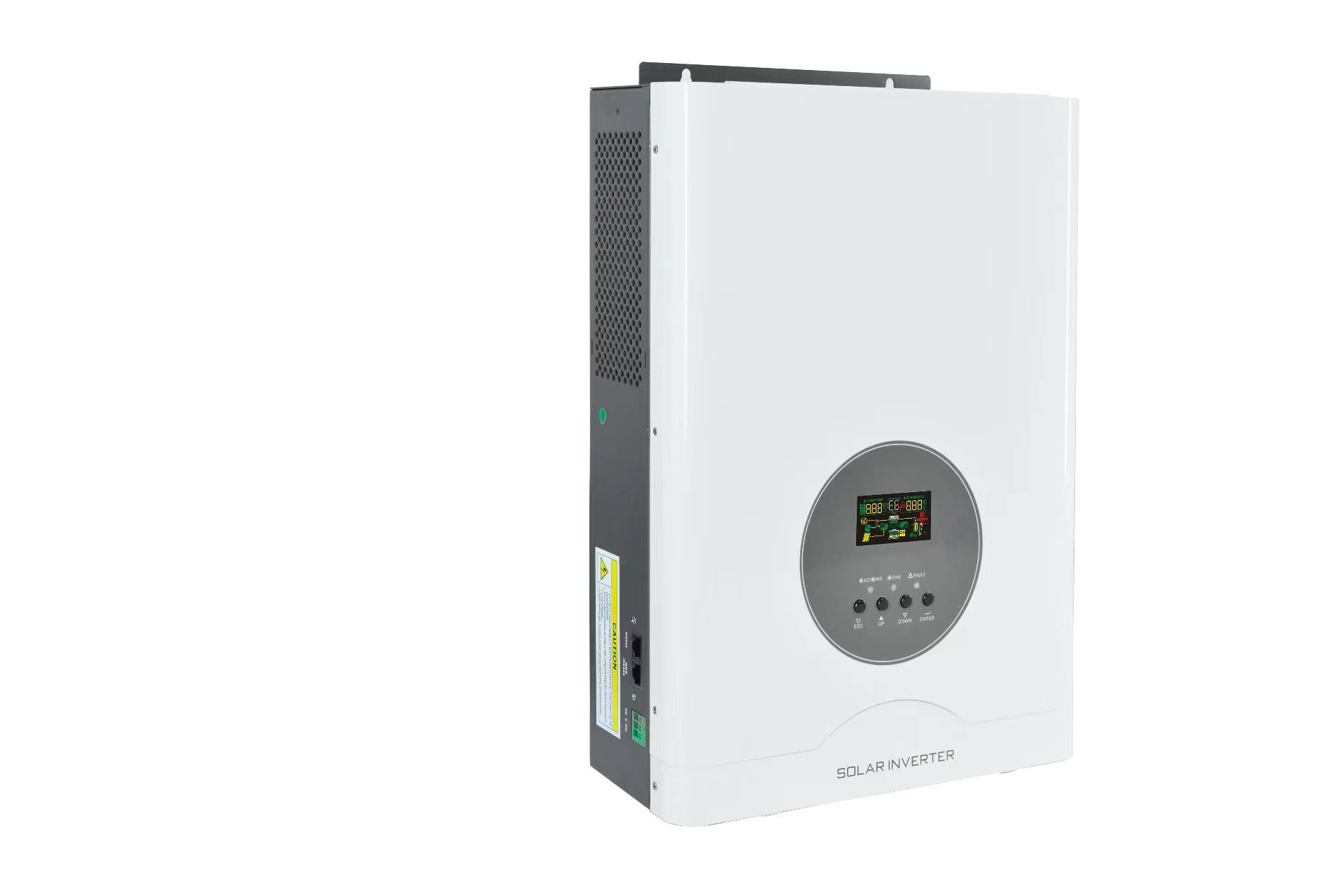

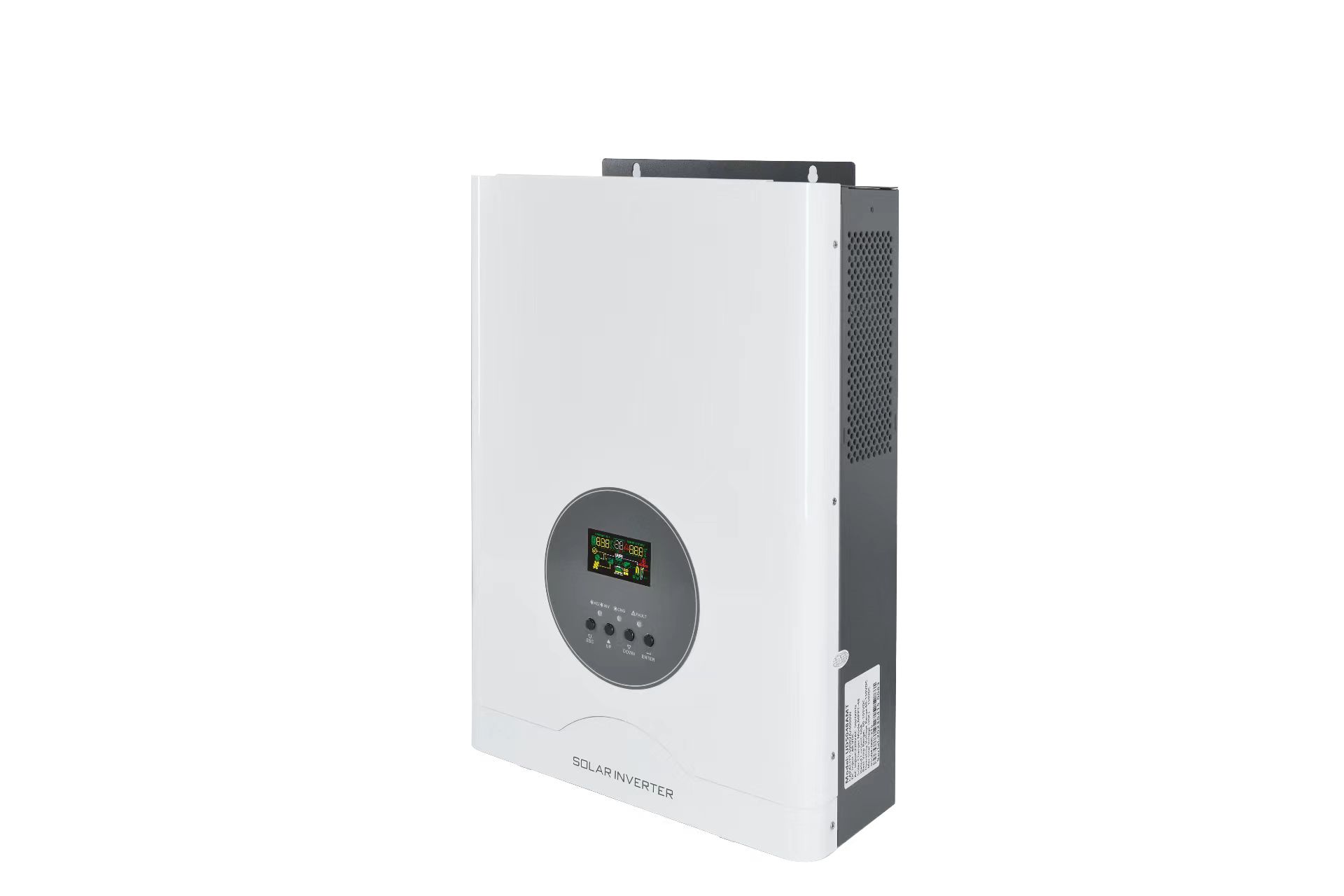

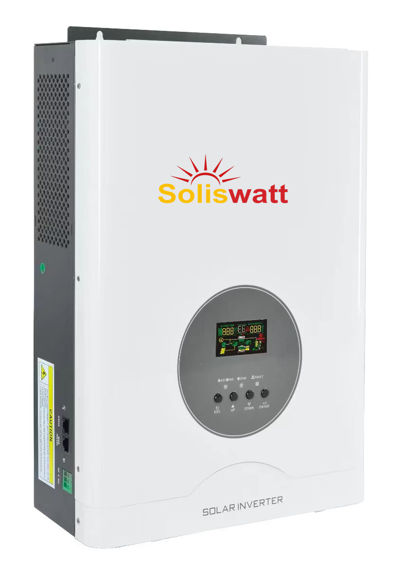

Off Grid/Hybrid Inverter

电源输入AC Input

voltage

220VAC (   standard)

轿入电压范围Input voltage range

154 -   264VAC 士3V( Nor Model) l8 5- 264VAC 士3V( UPS model)

IIOV机型： 77- 132VAC 土3 V (Nor Model) 92- 132VAC土3V (UPS model)

辆入频率Inp ut f『eq uency

50 / 60H在 5%

额定输出功率Out put power

1200W

1600W

2400W

4000W

5000W

8000W

10000W

市电下输出电压

AC model output Voltage

市电下的输出电压跟输入电压一样

The output voltage unde 「 the mains is the same as the input voltage

市电下输出频率

AC model cutout frequency

市电下的输出频率踉输入频率一样

Th e output freq uency   under the mains is the same as the   inputfrequency

逆变下输出电压

Batt e『y m od el output voltage

220VA C士10 % （ 定制II OV AC 士10%)

逆变下输出频率

Batt e『y m od el output   frequency

50HZ o「 6 0 HZ 士 1%

逆变下输出波形

Battery model output wave

正弦波Pu re sine wave

电池类型Batt ery type

外接铅酸电池，胶体电池，水电池或者锤电池

Exte rn a l le a d - a ci d battery,Gel batt e『y, wate「 batt e「y o『 Lithiu m batt e「y

电池电压Ba t te ry vo ltag   e

12VDC

24VDC

24VDC

48VDC

48VDC

48VDC

48VDC

电池充电电压

Battery charging voltage

13.7VDC

27.4VDC

27.4 VDC

54.SVDC

54.BVDC

54.BVDC

54.SVDC

最大光伏阵列功率

Maximum PV array power

12V:800W

24V:l600W

48V:6400W

太阳能输入电压范围

Solar input voltage range

12V:MPPT 15V- 10 VDC

24V:MPPT 30V- 150 VDC

48V: MPPT 60V-150VDC

最大光伏陈列开路电压Maximum PV Display Open Circ uit Voltage

12V:    PWM 50VDC

24V:MPPT150VDC

48V:MPPT 150 VDC

最大太阳能充电电流

Maximum solar char ging   current

60A

120A

最大AC充电电流

Maximum AC Charge Current

40A

33A

50A

41A

52A

83A

104A

转换时间Tra n sfer time

,10ms  (UPS模式）／,

20 m s (INV模式）

负载峰值比loa d peak ratio

(MAX)3:l

保护功能Pro t ec tiv e function

市电下： 输入过流保险丝Und er the    m a ins : in可p带ut  overcu『rent  fu se

逆变下：过载保护、短路保护、低压保护， （      电池防反接板）。

Under inve『te「:   overloa d p『ote ction.sh ort c「i c uit protection. low   voltage p「otection, (with   battery anti- reverse connection, board).

状态显示St a t u s Display

通过翻页键可以查看，AC电压 ， AC频 率，PV电 压 ， PV电 流 ，输出电压， 输出频率，电 池电压， 负载电流等参数。You can view parameters such as AC  voltage, AC  freq uency, PVvoltage, PV c u 「 re n t, output voltage, output frequency, battery voltage, load current and other parameters by turning the page keys

声音提示Vo ice prompt

电池低电保护蜂鸣器长鸣Lo w battery protection buzze『 lon g beep 电池低电蜂鸣器一秒一鸣Lo w b a   tt e r y buzzer beeps every second 机器故障蜂鸣器长鸣 Machine fault buzzer beeps

过载蜂鸣器长鸣 Overload buzzer beeps

过载小千130％蜂鸣器一秒一鸣， 30s后关断输出， 超载大于150％时300ms后 关断输出When the  overload is less than 130%, the   buzzer    will  sound every  second.and the output will be turned off  after    30S.  When  the  overload    is greater  than 150%,the output will be tu「ned off aft e『 300m S.

工作温度Operating tempera tu『e

-10"C- 50"C

存放温度St ora g e t e m p e ra t u『 e

-15"C-45"C

柜对温度Re la tive

t em p e ra t u r e

-10 °c - 90°c 无凝结 no condensa   tion

噪音Noise

<45dB
